Cleaver de Alta Precisión KL-22F
Categoría: Herramientas para Fibra Óptica
Características de Producto
● Typical Cleave Angel 0.5°
● Typical Cleave Angel 0.5°
● Double Fiber Holders
● Blade life 48,000 cleaves
● Hand held design, Small, compact size and light weight
● Applicable to 250um, 900um, 3.0mm fiber cable and flat cable
● Large capacity waste fiber bin, reduce pollution and scratches
Detalles del producto

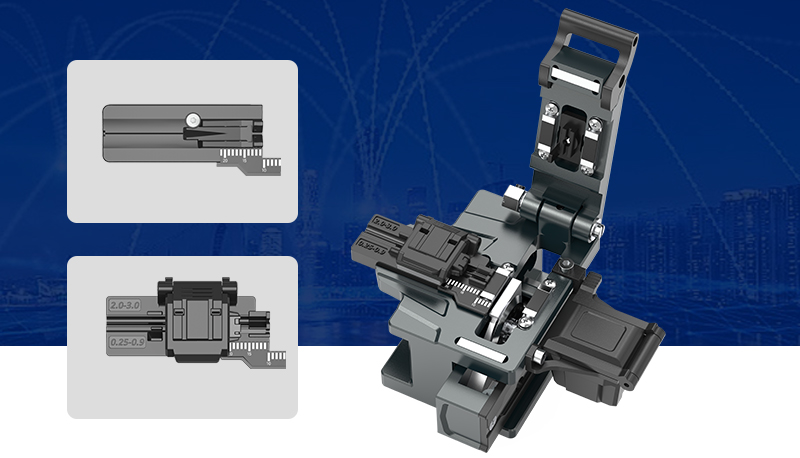

Palm Fiber Cleaver
● New appearance design
● Double fixture configuration

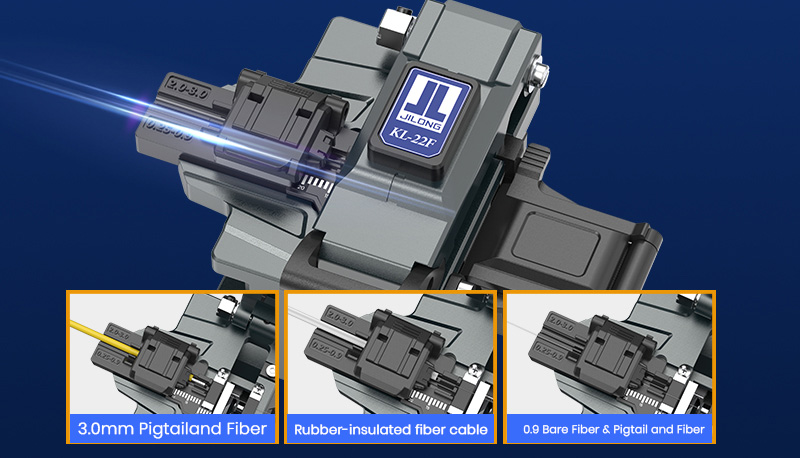

All-in-one Universal Fixture
● Reinforced silicone pressure pad, clamping the cable tightly, the fiber is not easy to slide
● Also available: single core: 250μm, 900μm, 3.0mm, leather cable / multi-core: 2 to 12 cores

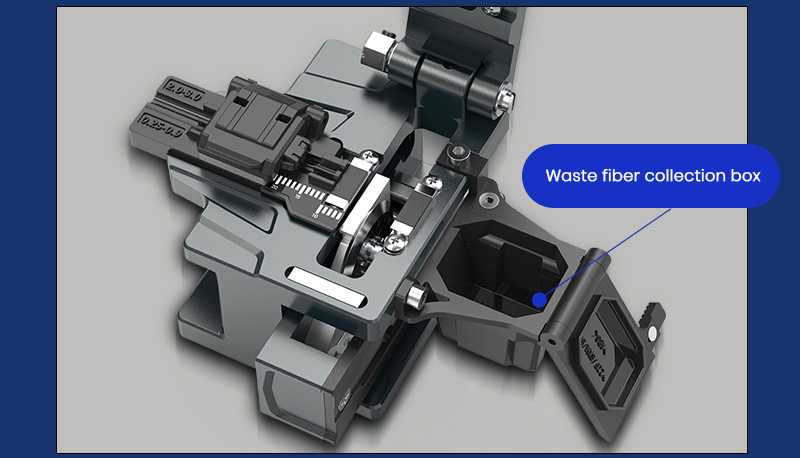

Waste fiber collection box
● Equipped with waste fiber collection box
● Solve the problems of difficult collection of waste fiber and easy injury

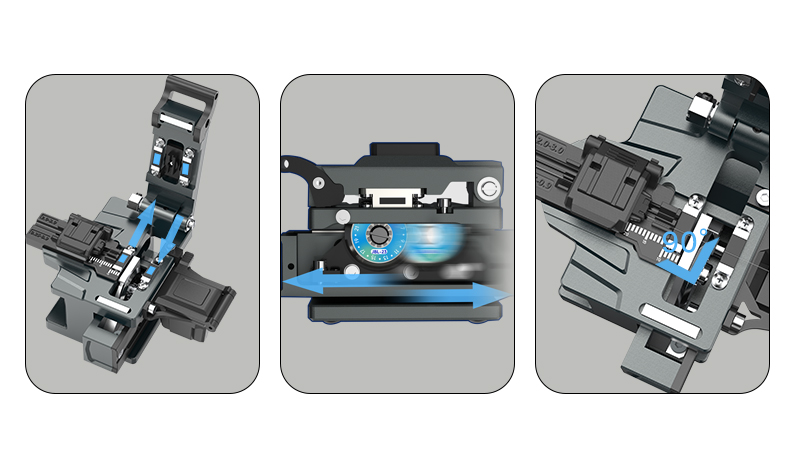

Factors that determine cutting precision
● Optical fiber cleaver for hot-melt and cold connection
● High-elastic silicone pressure sheet, anti-breakage design
● High-precision slide rail, precise and stable fiber cutting
● Cutting angle 0.5° (typical value), low splice loss

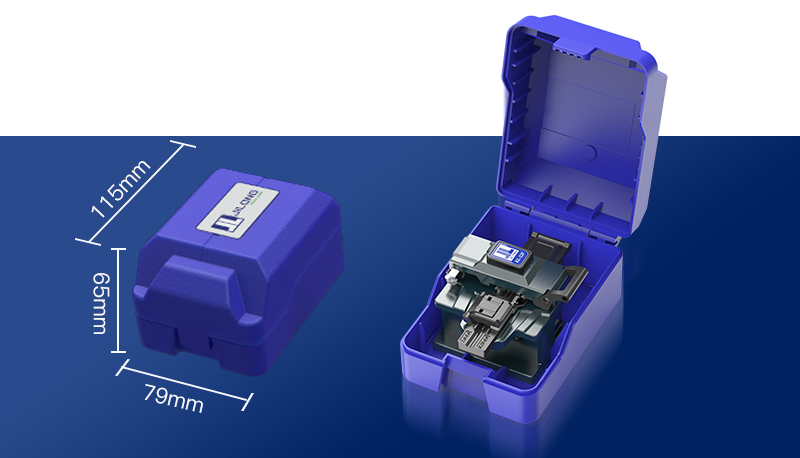

Equipped with anti-drop box
● Easy to carry
● Anti-drop box protects the knife body in all directions

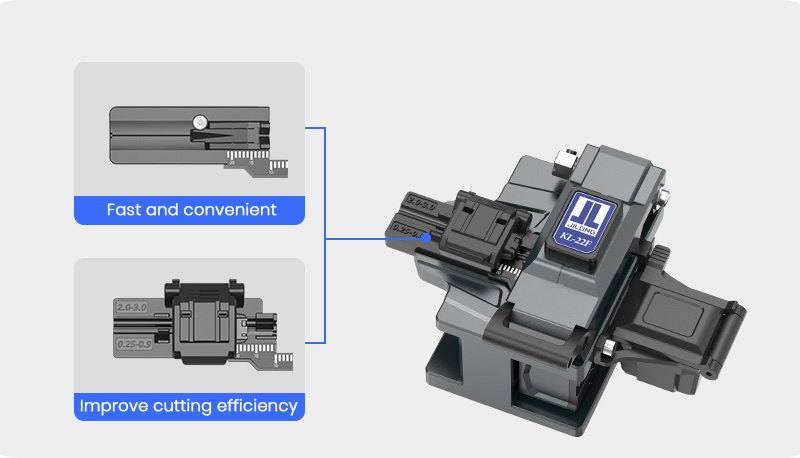

Dual Fixture Configuration
● Double fixture configuration
● Easy to use for novices, improving work efficiency
● Veteran use, convenient and fast
● Choose fixtures according to your needs

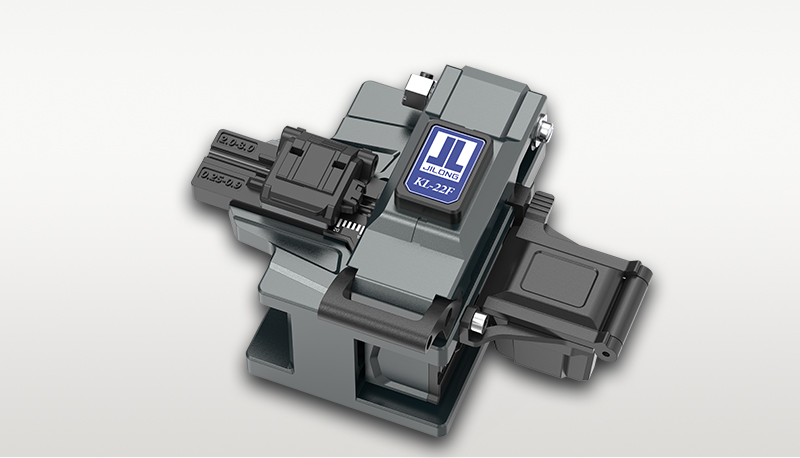

Brand new handheld design
● The overall design is small and light
● Convenient and easy to carry
Tungsten steel blade, durable
● The blade is made of tungsten steel, wear-resistant and durable
● High hardness, corrosion-resistant
● Sharp blade, stable cutting
Parámetros del producto
| Fiber Meterial | Silica glass |
| Cladding Diameter | 125 μm |
| Cleaved Length | Single fiber: 8~20mm / Ribbon fiber: 10mm |
| Applicable Fiber Cable | Single fiber: 250μm, 900μm, 3.0mm; Fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable |
| Typical Cleaved Angle | Less than 0.5°★① |
| Typical Blade Life | Total 48,000 fiber cleaves (replaceable)★② |
| Off-cut Collector | Pre-fitted |
| Type of Offcut Bin | Manual |
| Auto Return | Pre-fitted |
| Fiber Holder | Double Fiber Holders |
| Dimension | 55W *55D*50H(mm) |
| Weight | 235g |
